High Purity Hydrogen Generators
For GC Carrier Gas and GCMS Applications
Applications: GC-FID / NPD / FPD / TCD / GC-Carrier Gas / GCMS / ICPMS / Collision Cell / THA

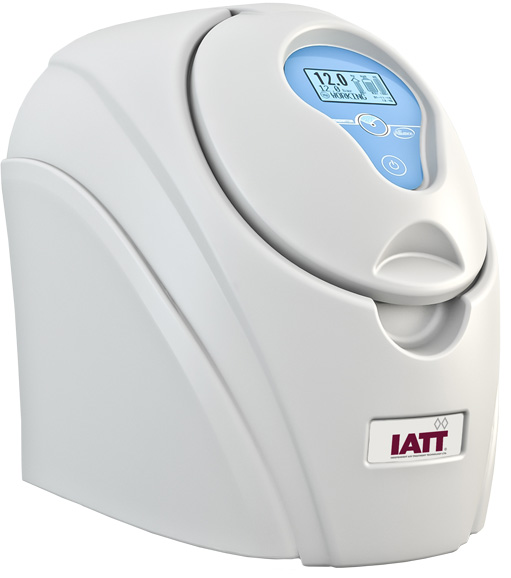

AiroGen® High Purity Hydrogen Generators from IATT use the latest Proton Exchange Membrane (PEM) technology to produce pure hydrogen from distilled or deionised water by hydrolysis.IATT offer 2 types of AiroGen® High Purity Hydrogen Generators in this range:
Type 1 - uses a single column desiccant cartridge dryer unit with programmable automatic regeneration via an integrated calendar.
Type 2 - uses an exclusive double gas column dryer regeneration system that eliminates maintenance downtime that is typical of other systems, giving you the guarantee of high purity hydrogen at all times.
Features
High level of operator safety
- Unique 9 stage, fail safe, explosion protection system.
- Automatic internal/external H2 leak detection.
- Patented electronically controlled gas/water separator.
- H2 Sensor option for carrier gas use.
Excellent user interface
- LCD touch screen showing H2 pressure, H2 flow rate, water quality, water level in real time and system status with auto-diagnostic in case of alarms.
High quality PEM technology
- Continuous monitoring of vital parameters.
- Unique PEM cell construction and water quality management ensure reliability and longevity of the cell.
- 2 years cell warranty.
Unique features
- Canister filling mode enable filling of a large canister to a pressure of 16 bar to enable portable GC field applications.
- Auto refill water tank in standard for most of the range.
- Remote PC monitoring in standard via RS232 or RS485 to interface the unit with PC software.
- Capable of working in parallel mode.
{ Get all the benefits of High Purity Hydrogen as a carrier gas... safely!
